Specification

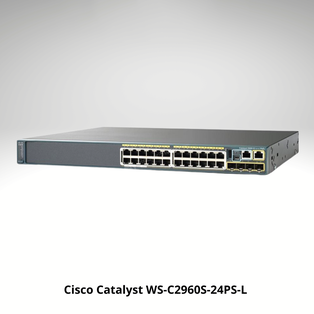

| Brand | Cisco Systems Inc |
| Model | WS-C2960S-24PS-L |
Performance
| RAM | 128MB SDRAM |
| Flash Memory | 64MB |
Form Factor
| Form Factor | Rack-mountable - 1U |
EXPANSION / CONNECTIVITY
| Expansion Slots |
Console ports USB (Type-B), Ethernet (RJ-45) Stacking cable 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x console - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 4 x SFP (mini-GBIC) Expansion Slots 1 (total) / 1 (free) x Stacking Module slot |
| Interfaces | Wired/Switching/Routing |
| Compatible Slots | 1 RJ-45 serial console port 1 RJ-45 out-of-band management port |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) |
Width 17.5 in Depth 15.2 in Height 1.8 in |
| Weight | 12.72 lbs |
NETWORKING
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports |
| Data Link Protocol | 50 Gbps Forwarding Bandwidth |
| Data Transfer Rate | 100 Gbps Switching Bandwidth |
| Features | LAN Base |
MISCELLANEOUS
| Mix Features |
Performance 1000 Mb Latency: < 5 µs 10 Gbps Latency: < 3 µs Throughput: up to 166.6 Mp/s Routing/Switching capacity: 224 Gb/s Routing table size: 12000 entries (IPv4), 6000 entries (IPv6) MAC address table size: 32000 entries |
POWER
| Power Options |
Power Device Internal power supply Voltage Required AC 120/230 V (50/60 Hz) Power Consumption Operational 55 Watt Environmental Parameters Min Operating Temperature 23 °F Max Operating Temperature 104 °F Humidity Range Operating 10 - 95% (non-condensing) Min Storage Temperature -13 °F Max Storage Temperature 158 °F Humidity Range Storage 10 - 95% (non-condensing) |
SERVICE & SUPPORT
| Warranty | limited 03-month warranty |
