Elite CMS & HMS is mainly a system that can help to maintain any clinic ((Dental / General Practitioner / Veterinary) or hospital activities properly and easily. Moreover, the clinic management system can be used as hospital software by upgrade. Also, it helps to keep centralized interconnected records and monitor the activities. So, this is a complete CMS & HMS software and the cheapest and easiest solution for managing any hospital activities.
Specification

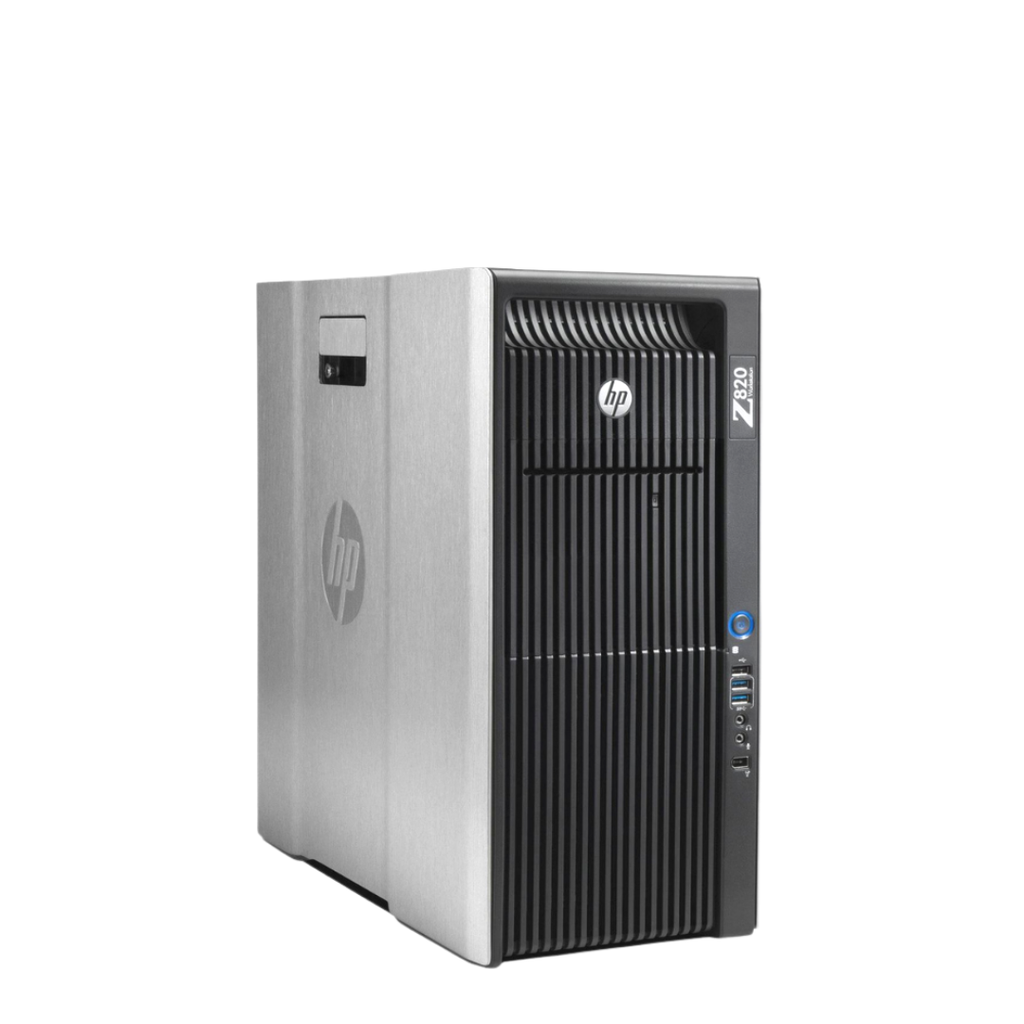

| Brand | HP |
| Model | HP Z620 |
Product Type
| Product type | Workstation |
Form Factor
| Form Factor | Mid-Tower |
Processor
| CPU Information | Processor PROCESSOR - 2 SOCKETS Intel® Xeon® processor E5-1600 and E5-1600 v2 product families Intel® Xeon® processor E5-2600 and E5-2600 v2 product families Intel Xeon E5-2670 @ 2.60Ghz CPU bus speed Up to 8 GT/s, depending on the processor Chipset Intel C602 chipset |
Memory
| Installed Memory | 32GB DDR3 |
| Memory Type | Supports up to 96GB Memory speed 1066, 1333, and 1600 MHz Up to 12 DIMM slots with 2 CPUs 8-channel ECC DDR3 1866 MHz 4 channels per CPU Memory mode Non-Uniform Memory Architecture (NUMA), Memory Node Interleave (MNI) |
Hard Disk
| Storage Option | SATA and SAS controllers Integrated 6-channel SATA controller: 2 ports 6 Gb/s + 4 ports 3 Gb/s, RAID 0, 1, 5, 10 capable Optional LSI 9217-4i4e 8-port SAS 6 Gb/s, RAID 0, 1, 10 capable Optional LSI 9270-8i SAS 6 Gb/s, RAID 0, 1, 10 capable DRIVE BAYS Internal: Three 3.5” External: Two 5.25” Note: Fourth HDD occupies one external bay Internal Storage: Intel® Pro 1500 SSD 180 GB Up to 4 3.5-inch 7200 rpm SATA drives: 500 GB, 1, 2, 3 TB (12 TB max) Up to 4 2.5-inch 10K rpm SATA drives: 250, 500 GB, 1 TB (4 TB max) Up to 4 2.5-inch 10K rpm SAS drives: 300, 600, 900 GB, 1.2 TB (4.8 TB max) Up to 4 3.5-inch 15K rpm SAS drives: 300, 450, 600 GB (2.4 TB max) Up to 4 2.5-inch SATA solid state drives: 128, 180, 240, 256, 480, 512 GB, 1 TB (4 TB max) Up to 1 2.5-inch SATA self-encrypting solid state boot drive (SED SSD): 256 GB (256 GB max) Up to 1 2.5-inch SATA self-encrypting hard drive (SED HDD): 500 GB (500 GB max) Up to 1 PCIe SSD: HP Z Turbo Drive 256 GB HP Z Turbo Drive 512 GB Fusion ioFX 410GB PCIe Accelerator Note: The fourth drive occupies one external 5.25-inch bay |
| Installed Hard Disk | HDD 3.5 |
GRAPHICS CONTROLLER
| Display Adapter | Installed Graphic Card K600 2GB Supported Graphic Cards Professional 2D: NVIDIA® NVS™ 310 NVIDIA® NVS™ 315 NVIDIA® NVS™ 510 Entry 3D: NVIDIA® Quadro® 410 NVIDIA® Quadro® K600 AMD FirePro™ V3900 Mid-range 3D: NVIDIA® Quadro® K2000 High-end 3D: NVIDIA® Quadro® K4000 NVIDIA® Quadro® K5000 NVIDIA® Quadro® K6000 AMD FirePro™ W7000 Graphics Processing Unit (GPU): NVIDIA® Tesla® K20c NVIDIA® Tesla® K40 NVIDIA® Quadro® Syn |
EXPANSION / CONNECTIVITY
| Expansion Slots | Front: 2 USB 3.0 1 USB 2.0 1 IEEE 1394a standard 1 microphone in 1 headphone out HP 15-in-1 Media Card Reader (optional) Rear: 2 USB 3.0 4 USB 2.0 1 IEEE 1394a 2 PS/2 2 RJ-45 to integrated Gigabit LAN 1 microphone in 1 audio line in 1 audio line out 1 serial Internal: 6 USB 2.0 ports available by three 2x5 headers Optional: 1 Thunderbolt™ 2 port via optional add-in PCIe card Slot 1 (top): PCI Express Gen2 x4(1), full-height, half-length Slot 2: PCI Express Gen3 x16, full-height, full-length (with extender) Slot 3: PCI Express Gen2 x8(4) with open-ended connector, full-height, full-length (with extender) Slot 4: PCI Express Gen3 x8 with open-ended connector, full-height, full-length (with extender) Slot 5: PCI Express Gen3 x16, full-height, full-length (with extender) Slot 6: PCI 32-bit/33 MHz, full-height, full-length (with extender) Internal bays Three internal 3.5-inch bays (with acoustic dampening rail assemblies pre-installed) External bays Two external 5.25-inch bays (4th hard drive occupies one external bay) |
NETWORKING
| Ports | Dual integrated Intel GbE LAN |
| Connectivity Technology | Optional Intel GbE NIC |
| Data Link Protocol | Infineon TPM 1.2 Controller |
| Data Transfer Rate | Optional HP X520 10GbE Dual Port NIC |
| Features | Infineon TPM 1.2 Controller |
POWER
| Power Options | 800W 90% Efficient Power Supply |
DIMENSIONS & WEIGHT
| dimensions ( H x W x D) | 44.45 x 17.15 x 46.48 cm (17.5 x 6.75 x 18.3 in) |
| Weight | Maximum configuration: 22.6 kg (49.9 lb) |
OPERATING SYSTEM
| Pre Install Os | OS Provided: Windows 10 Pro |
SERVICE & SUPPORT
| Warranty | limited 06-month warranty |
