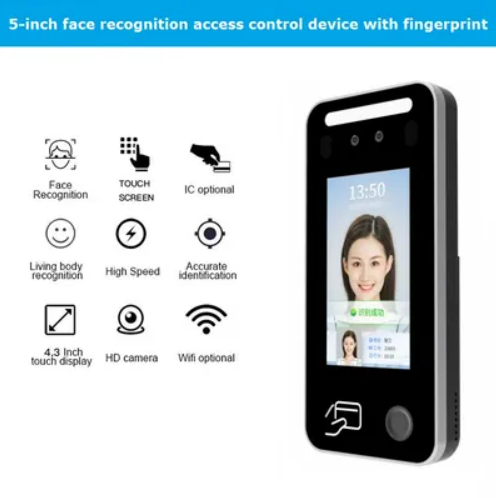

SkytecAccess 5" Smart Face Recognition Attendance & Access Control Terminal

 UAE, Saudi Arabia, Oman, Qatar, and Kuwait.

Model: SA-A9002FR-5KWS

Experience cutting-edge access control with the SkytecAccess 5" Real-Time Face Recognition Terminal, engineered for high-security attendance tracking and seamless access control. Built for durability and performance in extreme Gulf conditions, this system combines face recognition, IC card support, and WiFi connectivity in a sleek, compact design.

🔧 Key Features:

• 5-inch IPS HD Touch Display with anti-glare and responsive interface

• Real-Time Dual-Camera Face Detection with Live Presence Verification

• High-Speed Recognition: < 0.3s response time, even in strong backlight

• Advanced Linux OS for robust and secure operations

• IC Card Support: 13.56MHz standard RFID

• WiFi-Enabled for wireless deployments

• Expandable Fingerprint Authentication (Optional – up to 3000 fingerprints)

• Front-End Touch Setup for user registration and device config

• Built-in Audio I/O: Microphone input and speaker output

• Tamper Alarm & Environmental Resistance (-20°C to +60°C)

📊 Technical Specifications:

➤ Hardware:

• Processor: Dual-core ARM Cortex-A7 + RISC-V MCU

• OS: Embedded Linux

• Memory: 1GB RAM + 8GB eMMC

• Camera: Binocular, 2MP, 1920x1080, CMOS 1/2.8"

• Lens: 4.32mm focal length

• WiFi: 2.4GHz, IEEE 802.11 b/g/n

• Touch: Capacitive, single-point

• Display: 5" HD IPS (854x480)

• Body: Ultra-slim plastic housing

➤ Identification:

• Face Capacity: Up to 5,000

• Fingerprint Capacity: Optional, up to 3,000

• Record Storage: 100,000 logs

• Recognition Range: 0.3 to 1.5 meters

• Recognition Angle: ±30° horizontally & vertically

• Recognition Time: < 0.3s

• Supported Height: 1.2–2.3 meters (adjustable)

➤ Video & Image:

• Resolution: 1920x1080

• WDR: 100 dB for strong backlight compensation

• Codec Support: H.265, H.264, MJPEG

• Dual-Stream Output: Main (1080p/720p), Sub (720x576/640x480/320x240)

➤ Interfaces:

• Power: DC12V/2A

• RJ45 LAN Port

• Wiegand In/Out

• USB Port

• Door Lock / Door Sensor / Door Bell I/O

• Fire Alarm & Tamper Inputs

• RS485 Communication

➤ Environmental:

• Operating Temp: -20°C to +60°C

• Humidity: 0–90% RH (non-condensing)

• ESD: ±6KV contact / ±8KV air

• Salt Spray Protection: ≥ Rp6

📦 Packaging & Delivery:

• Dimensions: 40 x 18 x 12 cm

• Weight: 2.5 kg

• Mounting: Wall Bracket Only

•


---

🌍 Ideal for:

Government offices, corporate buildings, schools, smart factories, and residential towers across UAE, Saudi Arabia, Oman, Qatar, and Kuwait.

✅ Custom branding, packaging, and logo options available for bulk orders (100+ units)
