SkytecIntercom DS06MP – Vandal-Resistant SIP IP Video Intercom

 UAE, Saudi Arabia, Oman, Qatar, and Kuwait.

DS06MP – Single Channel Relay

📷 Overview

SkytecIntercom DS06MP is a robust, high-performance SIP-based IP video intercom ideal for residential, commercial, public safety, and industrial deployments. Combining two-way audio, advanced video surveillance, and access control in a single device, it ensures secure and convenient communication and monitoring in all environments.

The device operates independently within existing LAN infrastructures, supports remote access, and does not require any additional display units or servers. Its anti-vandal, weather-resistant metal housing and wide operating temperature range make it ideal for indoor and outdoor installation.

🔧 Key Features:

• 1.3MP Sony Exmor sensor for superior image quality

• Rotatable housing with 80° (H) / 53° (V) field of view

• Built-in IR LEDs (up to 10m), Day/Night with IR-cut filter

• Facial recognition for automatic access (up to 30 users)

• Two-way audio with echo cancellation (Duplex)

• Motion detection, alerting, and event recording

• Wide SIP protocol support – works with IP-PBX, VoIP, SIP phones

• Tamper-proof IK10 metal housing, IP54 weatherproof rating

• Remote access via mobile apps (iOS/Android) and PC software

• Power over Ethernet (PoE) or 12V DC operation

• Integrated 8GB MicroSDHC card for local recording

• Cloud video support via CamDrive (optional)

📊 Technical Specifications:

• Category	Specification
  Camera	1.3MP, 1/3” SONY Exmor, 0.01 lux (day) / 0.003 lux (night), 2.8mm pinhole lens
  Image Features	DWDR, 2D/3D Noise Reduction, Digital Zoom, Field of View: H:80° / V:53°, Rotatable Body
  IR Illumination	Built-in 3rd Gen IR LED, 850nm, Up to 10m
  Audio	Built-in Microphone & Speaker, Full Duplex, G.711 / G.726 Compression
  Video Encoding	H.264 BP/MP, Motion JPEG
  Resolution	1280×960, 1280×720 (Main); 720×576, 640×480, 320×240 (Sub)
  Frame Rate	Up to 25 fps
  Network	10/100Base-TX, DHCP/Static IP, SIP v2.0, ONVIF v2.41, TCP/IP, HTTP, HTTPS, RTSP, FTP, etc.
  Control	Supports 3 relays (door, light, alarm, etc.) with encrypted actuator bus
  Recording	Motion, Network Events, Call Button – stored on microSD or via FTP/email
  Operating Temp	-40°C to +50°C
  Housing	IK10 Vandal-Resistant Metal Body, IP54
  Power	PoE (IEEE 802.3af) or 12V DC (Max 5W)
  Dimensions	73 x 166 x 51 mm
  Weight	570g
  Colors	Dim Black / Metallic Gray (Customizable)
  Mounting	Hidden screw bracket + adjustable viewing angle
  Included Software	SkytecIntercom Visor (Windows), Mobile Apps (iOS/Android)

🔐 Advanced Functions

• Face Recognition: Autonomous access control with no internet required

• Triple Actuator Support: Control doors, gates, lights via secure encrypted bus

• Cloud Support: Stream, record and access from anywhere via CamDrive

• Flexible Integration: Works with IP-PBX, SIP softphones, Cisco, ISS, and third-party VMS

🏠 Applications

• Single-family homes with mobile access

• Commercial buildings with remote management

• Public safety SOS points on highways or car parks

• Smart city installations integrated into municipal systems

• Hospitals, Schools, Prisons, and more

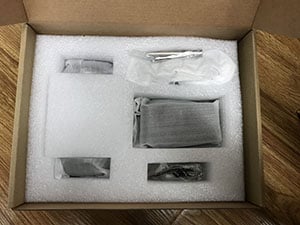

📦 Package Contents

• Door Station (with pre-installed memory card)

• Adjustable Bracket (2 parts)

• Secret Mounting Screws

• RJ-45 Connectors (x2)

• Junction Box & Mounting Hardware

• Clip Connector

• CD (with Software and Manuals)

⚠ Power Adapter not included — to be purchased separately.

---

📲 Mobile & Remote Management

Access, monitor, and control your SkytecIntercom through our free software suite for Windows or via mobile apps for Android and iOS. Receive alerts, open doors, or view live feeds directly from your phone.
